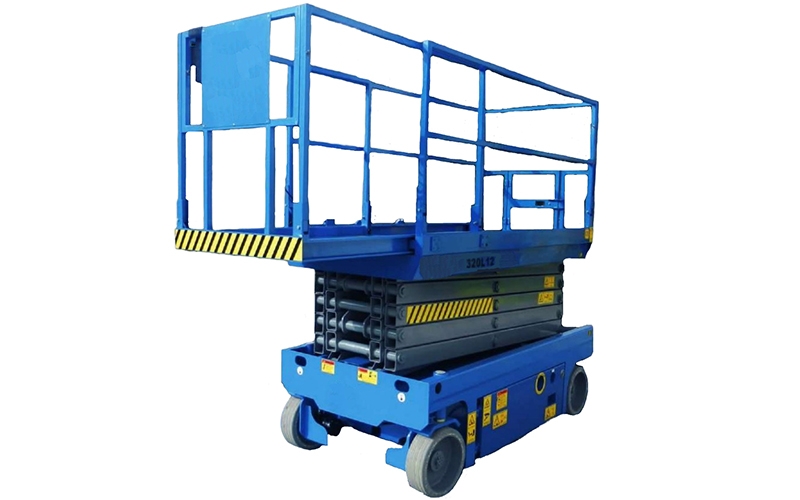

GT230L12 Scissors Lifts

Using the battery as the power, energy saving, and environmental protection, zero-emission, noiseless, suitable for indoor flat ground and high-altitude operation environment with high environmental requirements.

Download PDF

Technical Detail

Model GT230L12
Max Lifting Capacity (Kg) 320
Sliding Case Lifting Capacity (Kg) 120
Max Number Of Personel 2
Turn Diameter 220
Closed Speed (Km/h) 3.5
Opem Speed (Km/h) 0.8
Max Driving Tilt (%) 25
Max Operating Tilt X3-Y1.5
Wheel Diameter (mm) 386
Engine 3.5 kv 24v
Battery 4x6v 225ah
Integrated Power Unit 24v 25a
Weight (Kg) 2650
Working Height (m) 12.00
Platform Height (m) 10.00
Ground Clearance (cm) 2.00
Standart Features Proportional Control
Self - Locking Platform
Door
Driving at Maximum Height
Trackless Tires
Automatic Braking System
2wd
Emergency Stop Button
Emergency Lowering System
Cylinder Holding Valve
Tilt Sensor
Alarm in All Movements
Horn
Forklift Pockets
Charge Protection
Pliable Railings
Warning Light
Optional Features AC Power Up To
Platform
Weight Sensor
Lighting System On The
Platform
Air Outlet Up To
Platform
Impact Sensor
