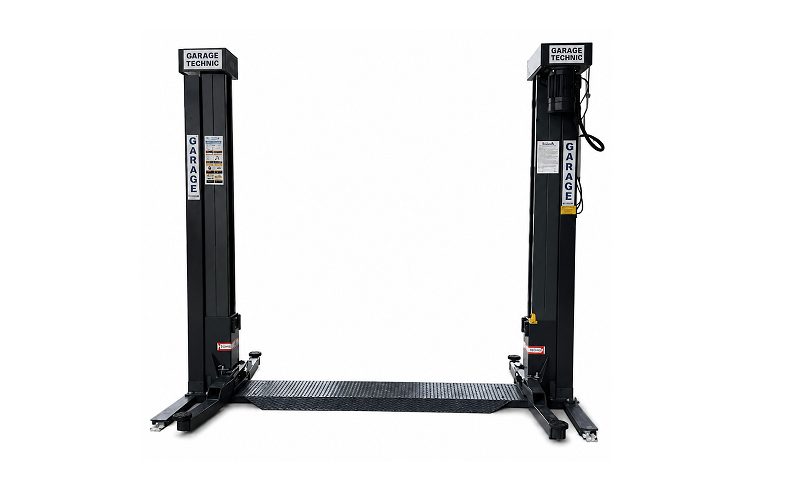

ML 3500 two-column lifts are manufactured using high-quality materials for automobile and light commercial vehicle maintenance services and have completed all safety certifications. They are used safely in service areas. Our machines have electronic and mechanical safety systems. The system moves on a mechanical shaft.
| TECHNIC DETAIL | INFORMATION |
| Model | ML 3500 |
| Lifting Capacity (Kg) | 3500 |
| Total Height (mm) | 2700 |
| Maximum Lifting Height (mm) | 1800 |
| Distance Between Columns (mm) | 2645 |
| Support Distance (mm) | 2535 |
| Minimum Loading Height (mm) | 135 |
| Width (mm) | 3300 |
| Short Arm Minimum Circular Movement Radius (mm) | 650 |
| Short Arm Maximum Circular Movement Radius (mm) | 1300 |
| Long Arm Minimum Circular Movement Radius (mm) | 800 |
| Long Arm Maximum Circular Movement Radius (mm) | 1400 |
| Tuning Leg Length (mm) | 1800 |
| Motor (1 Pcs) | 400 V/50 Hz.(5,5 Hp/1500 d/dk) |
