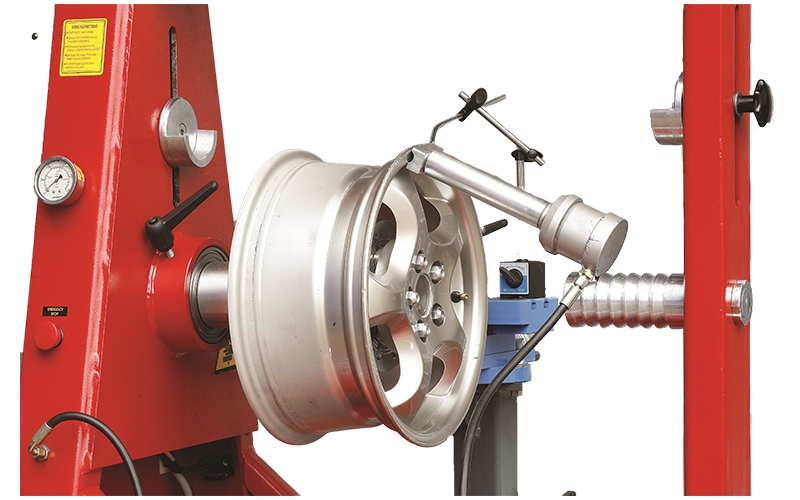

JDT1030-4 10'' 30'' Wheel Straightening & Lathe Machine - 4 piston

JDT1030-4 Wheel Straightening Machine has been designed for straightening rims from 10’’ to 30’’. It works with same principle of stable balance machines. The working principle is like balancing weight… giving opposite effects with mobil piston to inclined sides of the rims.  JDT1030-4 Wheel  Rim Straightening Machine has been designed to use by each service operators who work in tyre and rim shops. It has special design to learn and use easier. Especially for  the healthy balancing operation we have to reduce the balance value on the wheels in acceptable conditions. It should be combined with wheel balancers to be preparation before wheel balancing. Also the process time is reduced much by 4 piston.

USAGE AREAS
Automotive Industry

    *Automobile, Truck, Bus Service areas
Aircraft Industry

    *Aircraft maintenance and repair hangars
Defense Industry

    *Wheeled defense vehicles maintenance workshops

Download PDF

Technical Detail

Model JDT1030-4
Maximum Rim Diameter 10'' 30''
Maximum Rim Width 20''
Hydraulic Engine Power 0.37 kW, 50 Hz, 380 V 3 Phase
Axle Engine Power 100 Hp, 100 rpm, 0.75 kw
Working Pressure 0-200 bar ( Standard 150 bar )
Sound Level 70 Dba
Dimensions (mm) 1300*800*1700
Weight (Kg) 550
