TJD1726 - 17'' 26'' Wheel Straightening Machine - Truck & Buses

TJD1726 Rim Press machine, designed and manufactured to eliminate minor bending and dents in rims that cause major problems in balance, is a complement to wheel alignment and balancing machines.

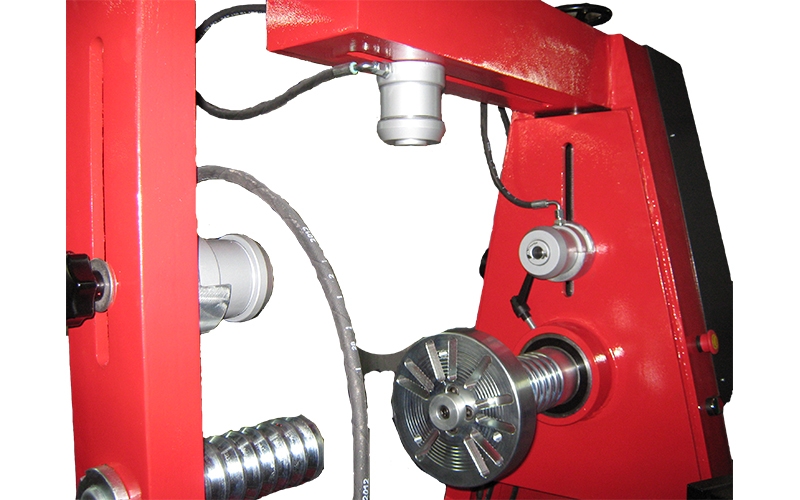

TJD1726 Rim Press machine is designed for straightening rims of 17”-26” sizes. It works on the working principle of fixed balancing machines. It is a hydraulic and electrical machine. The crooked parts detected on the rims with the help of a gauge are corrected with the machine's piston with a maximum power of 7500 kg. With its controlled and automatic rotation feature, the machine provides suitable working conditions on the rim. There is a hydraulic structure that is activated when the hydraulic engine pumps oil.

USAGE AREAS
Automotive Industry

    *Automobile, Truck, Bus Service areas
Aircraft Industry

    *Aircraft maintenance and repair hangars
Defense Industry

    *Wheeled defense vehicles maintenance workshops

Download PDF

Technical Detail

Model TJD1726
Maximum Rim Diameter 17'' 26''
Maximum Rim Width 16''
Hydraulic Engine Power 0.37 kW, 50 Hz, 380 V 3 Phase
Axle Engine Power 100 Hp, 100 rpm, 0.75 kw
Working Pressure  0-200 bar ( Standard 150 bar )
Sound Level 70 Dba
Dimensions (mm) 700*1400*1850
Weight (Kg) 900
